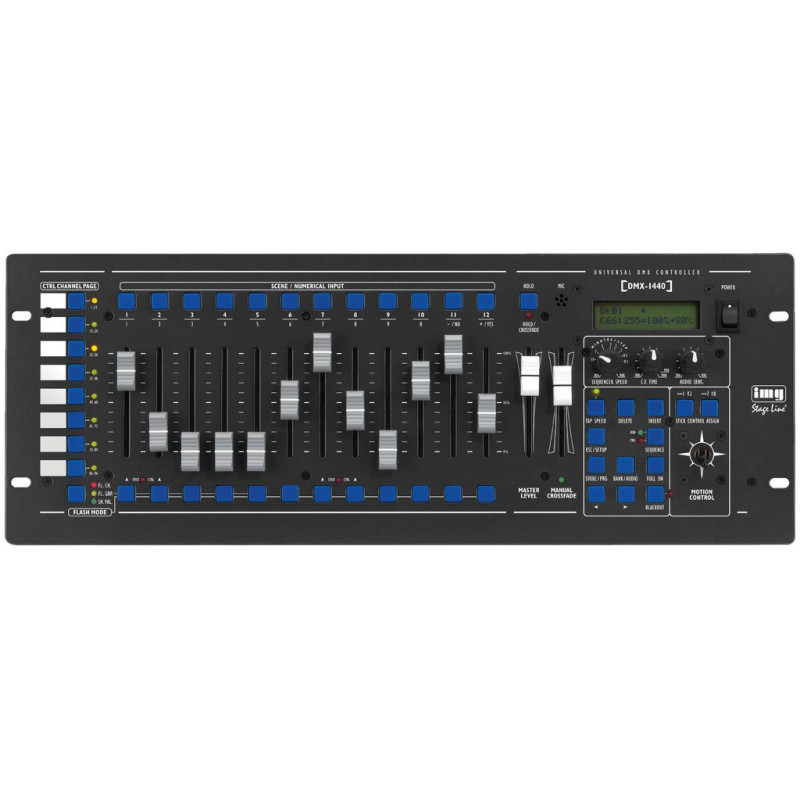

DMX-1440, Professional DMX controller

Professional DMX technology made easy: the controller DMX-1440 from IMG STAGELINE impresses with a perfect functionality. The operating concept and the hardware were perfectly optimised during extensive developments with regard to effectiveness and easy access.Professional DMX controller, for controlling light effect units with DMX512 interface, suitable for versatile DMX applications due to universal configuration facilities.144 DMX channels to 96 control channels, to be assigned as desired and individually invertableFeatures like crossfading, dependency on master and reaction with blackout function and flash function can be adjusted separately for each control channelEach DMX channel can be patched to any fader channel12 channel faders for adjusting the DMX parameters in 8 groups, multiple selection possible for synchronous adjustment12 flash buttons, 5 flash groups to be programmed as desired, further functions of the flash buttons: recall current channel values as a DMX value and in percentageMomentary push-button for full-onBlackout functionMaster fader for dimming a complete sceneCrossfader for manual crossfading16 channel pairs alternatively adjustable via joystick controller240 scenes can be storedCrossfading between scenes from 0.1 to 25.4 s or to be selected manually with display of remaining time during crossfading60 sequences with 120 steps each can be storedCrossfading time to be stored separately for each step of a sequenceSequence reproduction: manual, time-controlled, music-controlled; forward or reverseMusic-controlled via built-in microphone or stereo input for music signal with line level (0.1-2 V/22 kΩ)Illuminated alphanumerical LCD with 2 lines of 16 characters eachConnections: 1 x 5-pole XLR, 1 x 3-pole XLR (DMX out), 1 x 6.3 mm stereo jack (audio in)Power supply: ˜ 230 V/50 Hz/10 VADimensions: 482 x 178 x 85 mm, 4 RSWeight: 3 kg]]>
